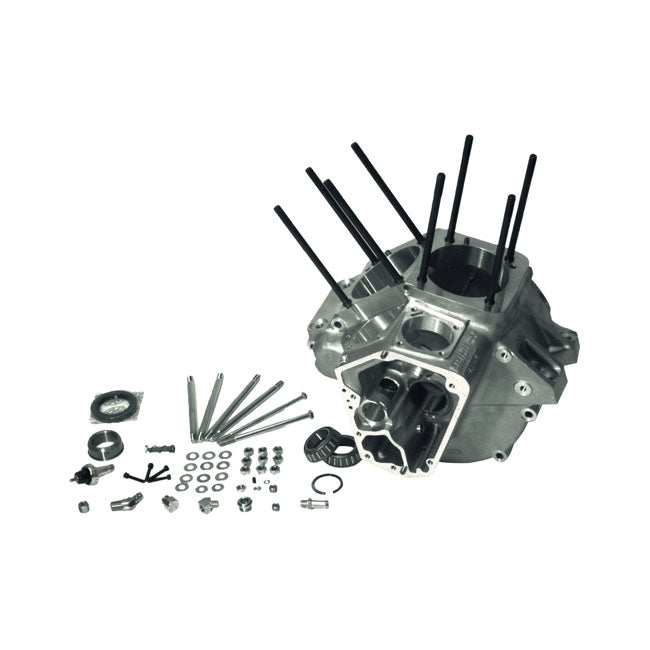

S&S, 36-47 crankcase assembly, 3-5/8" bore. Natural
€2.313,57
Sale price
€2.313,57
Regular price
€1.912,04
Skip to product information
SKU: 512327
S&S Superstock™ crankcases; made from 356-T6 aluminum; are much stronger than the OEM case. OEM cases can/may break in high performance or even stock applications; like more than a few of us found out the hard way. These S&S Superstock™ cases can be used for both stock replacement and racing applications. Important to the engine builder are the substantial savings in labor when using S&S cases. These cases come ''set up'' with sprocket shaft Timken main bearing races and cam needle bearings installed and pinion shaft main bearing race pressed in and line-honed. Additional parts that are supplied include Timken sprocket shaft bearings; cylinder studs; nickel plated case bolts; crankcase fittings; oil pressure sensor; timing & magnetic crankcase drain plugs and a special S&S design alternator stator plug clamp screw. The flywheel scrapers are machined to match the original 8-1/2" diameter flywheels. S&S cases maximize crankcase oil scavenging efficiency by using a ''ported'' design breather passageway. S&S cases are clearanced up to and including 5"; no additional clearancing for strokers will be necessary. S&S cases come complete with assembly instructions. Note: S&S crankcases for 36-54 Knuckle and Panhead models will not take OEM flywheels; pinion or sprocket shaft since late style (1955-up) Timken bearings are used in all S&S cases. 55-up shafts will not fit 36-54 OEM flywheels; S&S does not recommend machining 36-54 flywheels to take 55-up shafts. For all 36-55 B.T. applic
S&S, 36-47 crankcase assembly, 3-5/8" bore. Natural
€2.313,57
Sale price
€2.313,57
Regular price
€1.912,04
Fitment: 36-47 Knucklehead with 3-5/8 big bore cylinders (NU)
